제품 상세 정보:
|
재킷: | LSZH / PVC / HDPE | 외부 쉬스 색: | 오렌지 |
---|---|---|---|
섬유형: | OM3 | 애플리케이션: | 원거리 통신 |
강도 부재: | 아라미드 얀 / 금속 배선 | 핵심: | 4/6/8/12 |
상품 이름: | 섬유 OPTIC 1 핵심 FTTH 드롭 케이블 단일모드 실내 섬유 옵틱 케이블 | ||
하이 라이트: | 프트스 실내 광섬유 케이블,LSZH는 실내 광섬유 케이블을 입힙니다,단일모드 FTTH 드롭 케이블 |

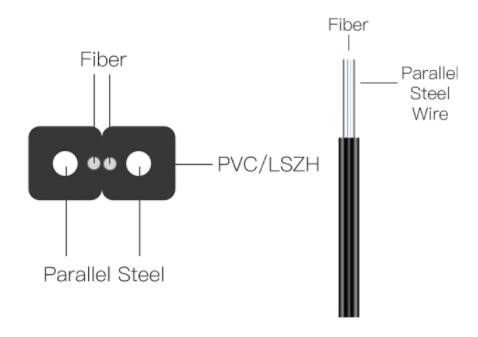

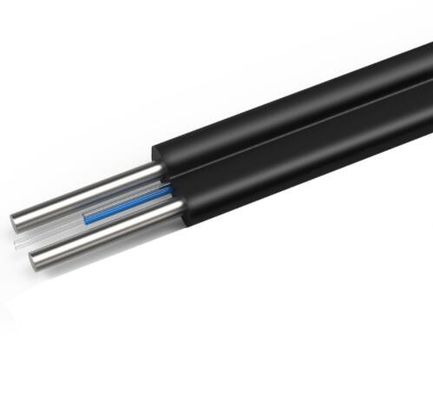

FIBER OPTIC 1 CORE FTTH DROP CABLE SINGLE MODE INDOOR FIBER OPTIC CABLE
Item
|
Technology parameter
|
Cable type
|
Drop Cable
|
Cable Count
|
1 2 4 6 8 12
|
Fiber color
|
Green, Yellow
|
Fiber type
|
9/125 (G657A2)
|
Sheath color
|
Black and white
|
Sheath material
|
LSZH
|
Cable dimension (mm)
|
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
|
Cable weight (Kg/km)
|
15
|
Min. bending radius (mm)
|
10 (Static) 25 (Static) 30 (Static) 60 (Static)
|
Attenuation (dB/km)
|
0.4 at 1310nm, 0.3 at 1550nm
|
Short term tensile ( N)
|
200; 600
|
Crush resistance (N/100mm)
|
1000; 2200
|
Operation temperature (℃)
|
-20~+70℃
|
strength member
|
material
|
Galvanized steel wire/FRP/KFRP
|
diameter
|
2*(0.5~0.8)mm
|
|
Self support Messenger wire
|
material
|
Galvanized steel wire
|
diameter
|
1.0mm
|
|
Outer sheath
|
material
|
LSZH
|
diameter
|
1.8±0.2mm
|
|
Cable size (Height * width)
|
2.0(±0.1) mm × 5.2(±0.2)mm
|
|
Cable sheath thickness
|
Max. 0.8mm/Min. 0.4mm
|
|
Messenger sheath thickness
|
0.5~0.7mm
|
|
Cable weight
|
1~2core
|
18.2KG
|
4-6 core
|
18.5KG
|
|
8~24core
|
54KG
|
