제품 상세 정보:
|
| 연결관 유형: | LC/SC/ST/FC/MU/MTRJ, 기타 등등 | 파장: | 1650nm에 1260년 |
|---|---|---|---|
| 타입: | 광섬유 plc 분배기, 1x2 1x4 1x8 1x16 2x8 2x16 | 연결관: | SC LC |
| 케이블 유형:: | G657A1 또는 고객들의 주문으로서 | 작동 온도: | -40℃에 85℃ |
| 섬유의 아니: | 2 4 8 16 | 용법: | FTTH |

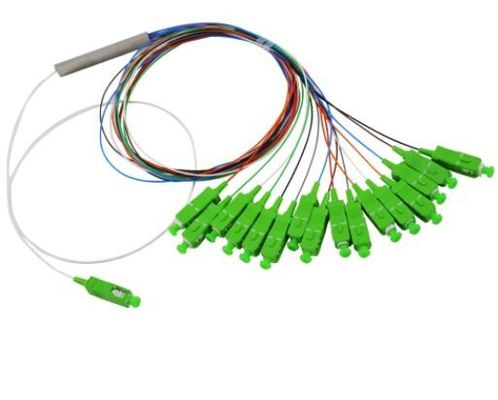

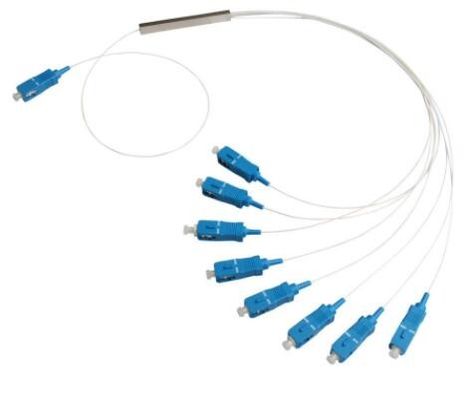

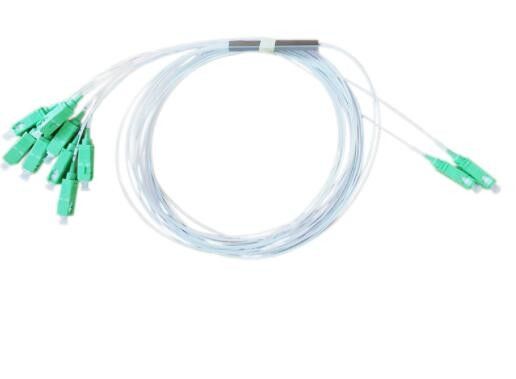

| 이름: | SC / APC 연결기와 1*2 4 8 16 32 64 SM 0.9 밀리미터 plc 광섬유 plc 분배기 | ||
| 하이 라이트: | 1*2 광섬유 PLC 분배기,0.9 밀리미터 광섬유 PLC 분배기,0.9 밀리미터 1*64 PLC 분배기 |
||
*Good uniformity and low insertion loss
*Low polarization dependent loss
*Excellent environmental stability
*Excellent mechanical construction
*Compact design, suitable for installation in optical equipment
*Wide operating temperature:-40~85 ℃
*High reliability and stability
Optical Signal Distribution
Data Communications
Lan and CATV System
FTTX Deployment
Passive Optical Networks (PON)
Measuring System and Laser System
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 |
| Operating Wavelength (nm) | 1260~1650 | 1260~1650 | |||||||||
| Fiber Type | G657 or customized | G657 or customized | |||||||||
| Insertion Loss (dB) | ≤4.1 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.1 | ≤20.4 | ≤4.2 | ≤7.6 | ≤11 | ≤14.5 | ≤17.5 |
| Loss Uniformity (dB) | ≤0.8 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤0.8 | ≤1.5 | ≤1.5 | ≤2 | ≤2.5 |
| Return Loss (dB) | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 | ≥50 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.2 | 0.2 | 0.3 | 0.4 | 0.4 |
| Directivity (dB) | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 | ≥55 |
| Temperature Stability (-40~85 ℃)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (℃) | -40~85 | -40~85 | |||||||||
| Storage Temperature (℃) | -40~85 | -40~85 | |||||||||
| Note: | |||||||||||
| 1. The insertion loss is at least 0.2dB less without connector. | |||||||||||
| 2. The insertion loss for 2×N PLC would increase less than 0.3dB. | |||||||||||
| 3. Insertion loss varies with different connectors:UPC ≥50 dB, APC ≥55 dB | |||||||||||

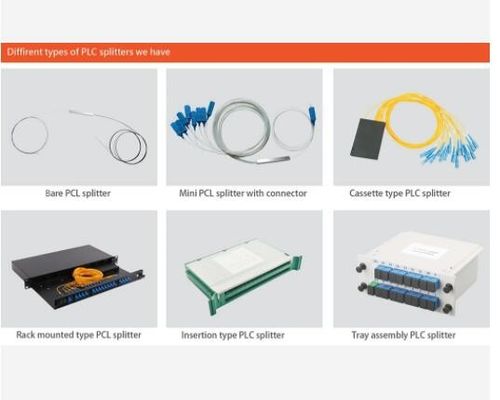

More Types
Details:
