제품 상세 정보:
|
| 애플리케이션: | 통신, 텔레콤, 네트워크, 인터넷, Lan | 섬유 유형: | G652D, 단일 모드 또는 다 형태, 50/125,62.5/125, OM3 |
|---|---|---|---|
| 지휘자의 수: | 2,4,8,12,24,48,96 | 타입: | 단일모드 g652d, 야외 광케이블 안테나, 단일모드 & ; 다중 모드 |
| 섬유 번수: | 2-288 핵심 | 색: | , 까만, 파란, 주문을 받아서 만드는 회색, 녹색 |
| 재킷: | PE, MDPE, LSZH, PVC | 이름: | GYXTW 섬유 옵틱 케이블 단일모드 2-12cores 유니 튜브 경무장 케이블 |
| 길이: | 2 킬로미터 또는 주문 제작된 길이 | 재킷 물자: | PE, LSZH, 열 가소성 폴리우레탄 수지, LSZH 또는 PVC |
| OEM: | 이용 가능합니다 | 설치: | 자립하 공기, 공기, 도관 |
| 구조: | 느슨한 관, Unitube | 작동 온도: | -40~75 |
| 칼집 물자: | LSZH, HDPE, PVC, 또는 주문 제작됩니다 | 힘 일원: | 강선, 알루미늄, 또는 요구조건에 따라서 |
| 섬유 색깔: | 푸르고 오렌지색이, 갈색이, 연한 녹청색이, 회색이, 주문 제작됩니다 |

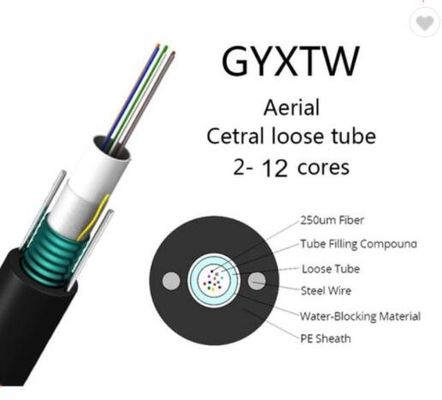

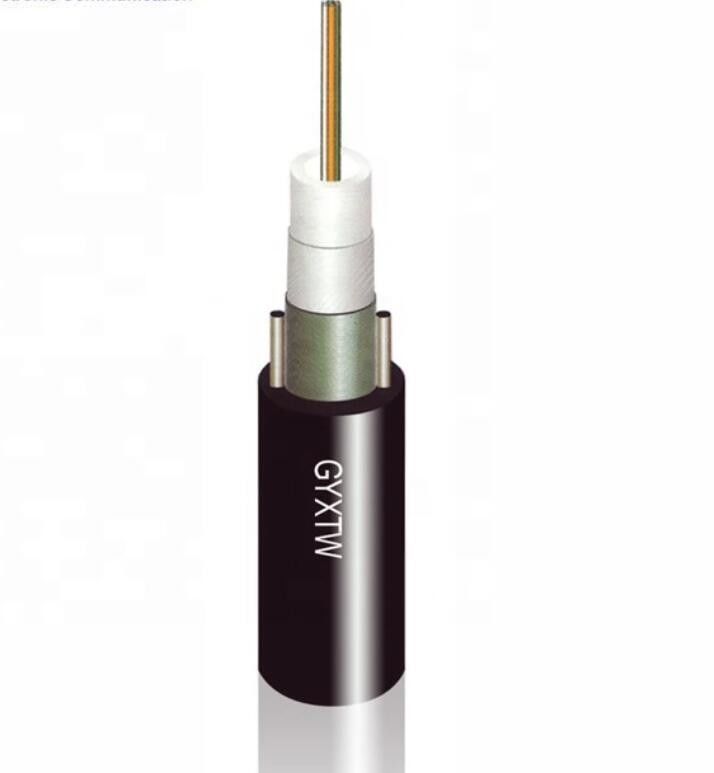

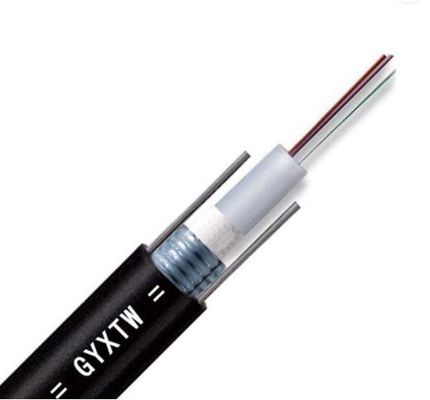

"Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
Characteristics of Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable
· Good mechanical and temperature properties.
· The loose tube material itself has good hydrolysis resistance and high strength.
· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.
· Double coated steel strip (PSP) improves the moisture resistance of the cable.
· Two parallel wires ensure the tensile strength of the cable.
· Small diameter, light weight and easy to lay.
· Long delivery length

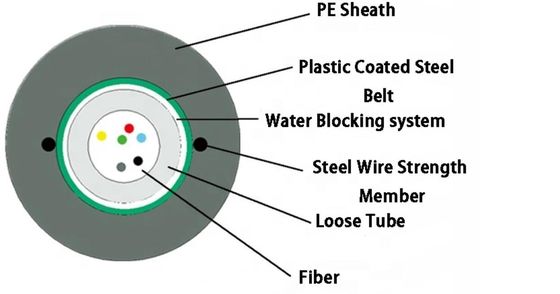

Structure and Technical specifications of Duct Aerial Optical Fiber Cable GYXTW Optical Fiber Cable
| Fiber Count | Cable Weight (kg/km) | Bending Radius (mm) | Tensile Strength (N) | Cruch Resistance (N/100mm) | |||
| Static | Dynamic | Long term | Short term | Long term | Short term | ||
| 2-12 | 124 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
| 14-24 | 147 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
| 26-36 | 150 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
| 38-48 | 207 | 10D | 20D | 600 | 1500 | 1000 | 3000 |
Optical Parameters:
| 50/125µm | 62.5/125µm | G.652 | G.655 | ||
| Attenuation(+20°C) | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| @1300nm | ≤1.0dB/km | ≤ 1.0dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.4dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥ 500MHz.km | ≥ 200MHz.km | ||
| @1300nm | ≥ 1000MHz.km | ≥ 600MHz.km | |||
| Numerical Aperture | 0.200 ±0.015NA | 0.275 ±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤ 1260nm | ≤ 1450nm |
Cable Parameters
| able count | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum allowable Crush load(N/100mm) |
Min bending radius(MM) |
Suitable temperature |
||||
| (core) | (MM) | (KG) | short term |
long term |
short term |
long term |
short term |
long term |
(℃) | |
| 2 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 4 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 6 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 8 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 10 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 12 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| 24 | 8.3 | 78.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 | |
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
